SROM on a Gamma distribution

In this example, Stratified sampling is used to generate samples from Gamma distribution and weights are defined using Stochastic Reduce Order Model (SROM).

Import the necessary libraries. Here we import standard libraries such as numpy and matplotlib, but also need to import the TrueStratifiedSampling and SROM class from UQpy.

from UQpy.surrogates import SROM
from UQpy.sampling import RectangularStrata
from UQpy.sampling import TrueStratifiedSampling
from UQpy.distributions import Gamma
import scipy.stats as stats
import matplotlib.pyplot as plt
import numpy as np

Create a distribution object for Gamma distribution with shape, shift and scale parameters as \(2\), \(1\) and \(3\).

marginals = [Gamma(a=2., loc=1., scale=3.), Gamma(a=2., loc=1., scale=3.)]

Create a strata object.

strata = RectangularStrata(strata_number=[4, 4])

Using UQpy TrueStratifiedSampling class to generate samples for two random variables having Gamma distribution.

x = TrueStratifiedSampling(distributions=marginals, strata_object=strata, nsamples_per_stratum=1)

Run SROM using the defined Gamma distribution. Here we use the following parameters.

• Gamma distribution with shape, shift and scale parameters as \(2\), \(1\) and \(3\).

• First and second order moments about origin are \(6\) and \(54\).

• Notice that pdf_target references the Gamma function directly and does not designate it as a string.

• Samples are uncorrelated, i.e. also default value of correlation.

y = SROM(samples=x.samples,
         target_distributions=marginals,
         moments=np.array([[6., 6.], [54., 54.]]))
y.run(properties=[True, True, True, True])

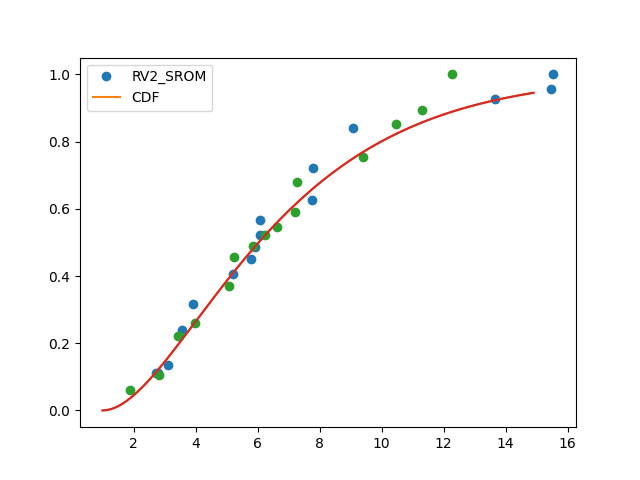

Plot the samples and weights from SROM class. Also, compared with the CDF of gamma distribution.

c = np.concatenate((y.samples, y.sample_weights.reshape(y.sample_weights.shape[0], 1)), axis=1)
d = c[c[:, 0].argsort()]
plt.plot(d[:, 0], np.cumsum(d[:, 2], axis=0), 'o')
plt.plot(np.arange(1, 15, 0.1), stats.gamma.cdf(np.arange(1, 15, 0.1), 2, loc=1, scale=3))
plt.legend(['RV1_SROM', 'CDF'])
plt.show()
e = c[c[:, 1].argsort()]
plt.plot(e[:, 1], np.cumsum(e[:, 2], axis=0), 'o')
plt.plot(np.arange(1, 15, 0.1), stats.gamma.cdf(np.arange(1, 15, 0.1), 2, loc=1, scale=3))
plt.legend(['RV2_SROM', 'CDF'])
plt.show()

A note on the weights corresponding to error in distribution, moments and correlation of random variables:

• For this illustration, error_weights are not defined and default value is \([1, 0.2, 0]\). These weights can be changed to obtain desired accuracy in certain properties.

print(y.sample_weights)

[9.89854571e-19 4.40931487e-02 5.98108486e-02 1.18746410e-01
 1.10451429e-01 3.60641598e-02 3.46262838e-02 8.64764540e-02
 2.33612832e-02 9.03621891e-02 4.47062747e-02 3.10261676e-02
 1.06312183e-01 7.58251496e-02 9.58057278e-02 4.23322906e-02]
